XRFLON® R206
Filler:Silica
Color:Tawny

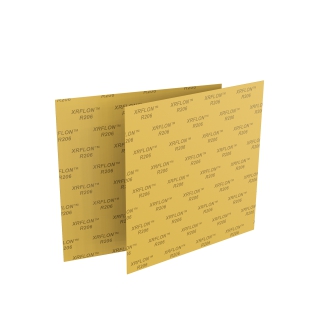

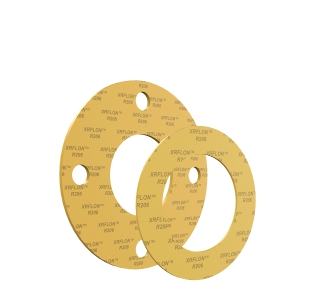

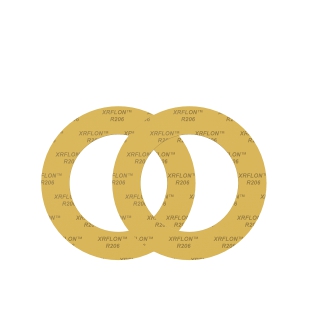

Size:Sheet (RF206): 500*500mm;1500*1500mm,Gasket (R206): support customization, can be provided accordi sizeng to the national standard flange
Temperature Range:-268℃ up to +260℃
Tensile Strength（ASTM F1708）:＞14MPa
Compressibility (ASTM F36):15%
Recovery (ASTM F36):＞40%
Creep Relaxation (ASTM F38 B):18%
Operating Pressure:8.3MPa
XRFLON® R206
XRFLON® R206 is a high-performance modified gasket made from polytetrafluoroethylene (PTFE) resin filled with high-purity silica powder. The R206 is subjected to repeated roller pressing, creating a highly fibrillated structure. And inorganic fillers are more homogeneously blended with PTFE resins, ensuring the R206 has more stably physical and mechanical properties, minimizing creep relaxation and cold flow problems associated with traditional PTFE gaskets.
XRFLON® R206 has excellent chemical resistance and is suitable for use in most chemical applications. In particular, it has excellent sealing properties in strongly acidic environments.
Advantages:
Suitable for services with high pressures and temperatures.
Suitable for services with a wide variety of aggressive fluids. Especially in strong acids (except hydrofluoric).
Suitable for services with organic solvents, water, vapors, chlorine, carbons, cryogenics applications, etc.
Excellent filling properties for sealing damaged/irregular flange surfaces.
Suitable for fragile flanges (FRP, ceramics, plastics), pipe flanges.
Quick and easy to install, no residue when replacing.
Easy to identify by color, reducing misuse.
